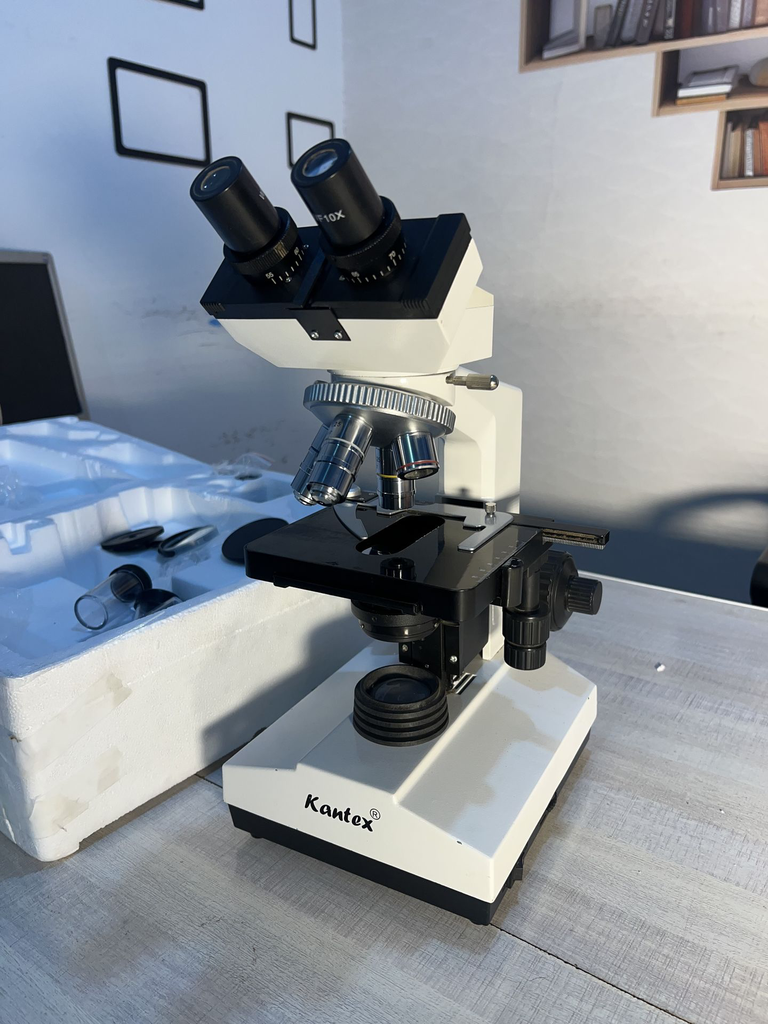

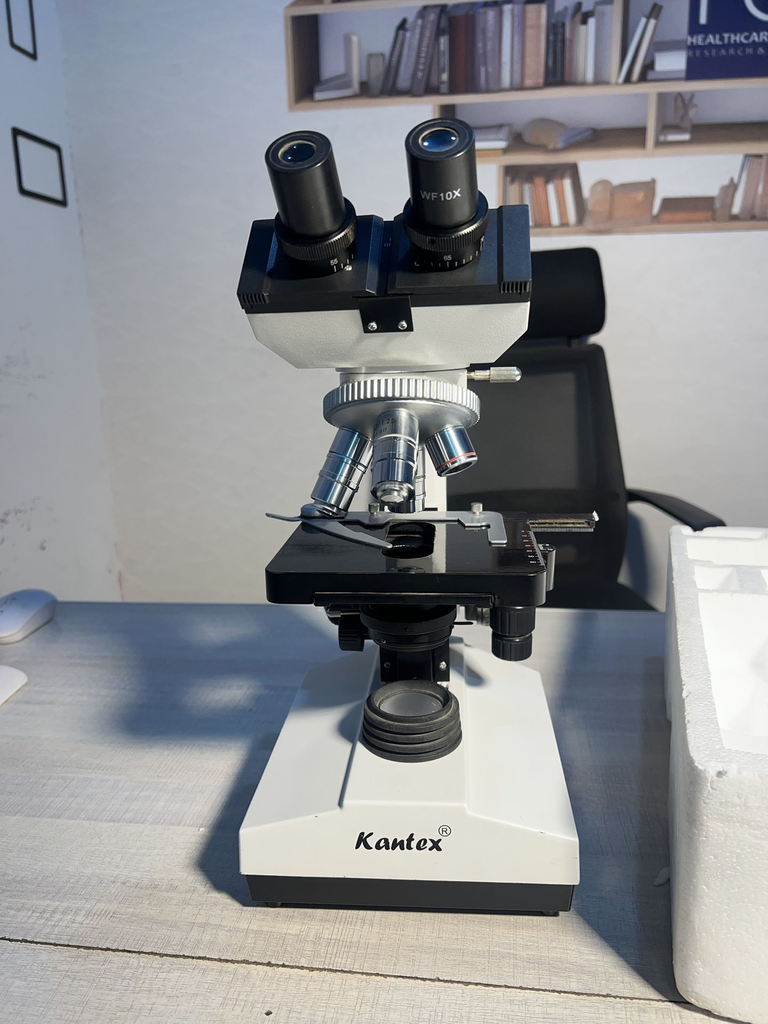

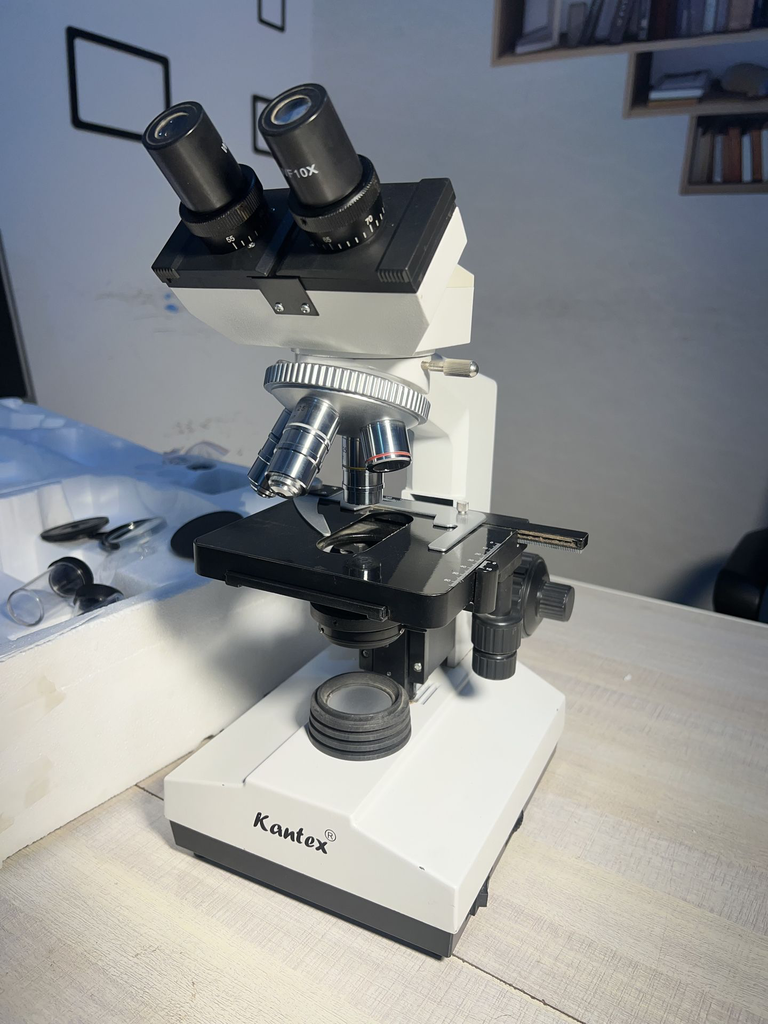

Elevate your laboratory observations with the XSZ-107BN, a versatile biological microscope delivering sharp, high-contrast imaging for clinical diagnostics, educational settings, and research applications.
Technical Specifications
Optical System: Finite chromatic aberration-corrected objectives (4X, 10X, 40X, 100X(Oil)) paired with widefield WF10X/18mm eyepieces for magnifications from 40X to 1600X.
Head: Seidentopf binocular 30°-45° inclined, 360° rotatable, interpupillary distance 48-75mm.
Stage & Focusing: Double-layer mechanical stage (125x123mm, travel 70x30mm), coaxial coarse/fine focus with 0.002mm precision.
Condenser & Illumination: Abbe N.A.1.25 iris diaphragm condenser; 6V20W halogen or 3-5W LED lamp with intensity control.
Ideal Applications
Perfect for microscopy of blood smears, tissue sections, microorganisms, and stained slides—robust metal frame ensures durability in high-use environments.
